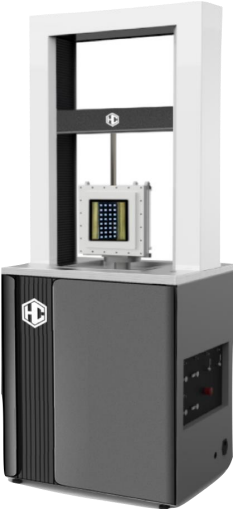

Plane Strain Testing System

Test Functions

Compatible with the loading mainframe of triaxial apparatus for high cost performance. Suitable for plane strain tests of earth dams, tunnels, retaining walls and other structures.

System Features

• Equipped with a full-surface deformation image measurement system for soil samples.

• Built-in force sensor, square flexible pressure cell is adopted for loading in the σ₃ direction.

• Innovative movable plate design is applied in the σ₁ direction to minimize the influence of axial friction on axial force measurement.

• A thin water film is added between the σ₂ direction and the front surface of the specimen to reduce friction.

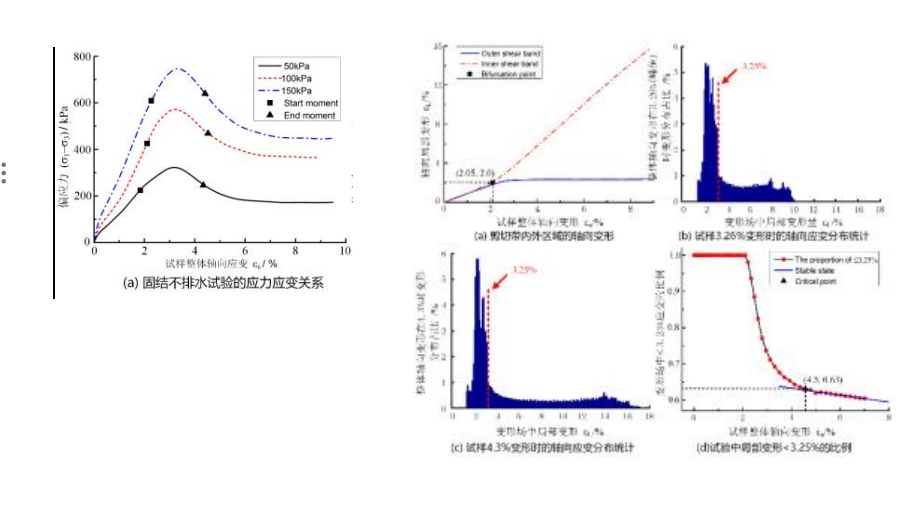

• Digital image measurement technology is used to directly measure specimen deformation and study the shear failure  process of soil samples.
