System Description

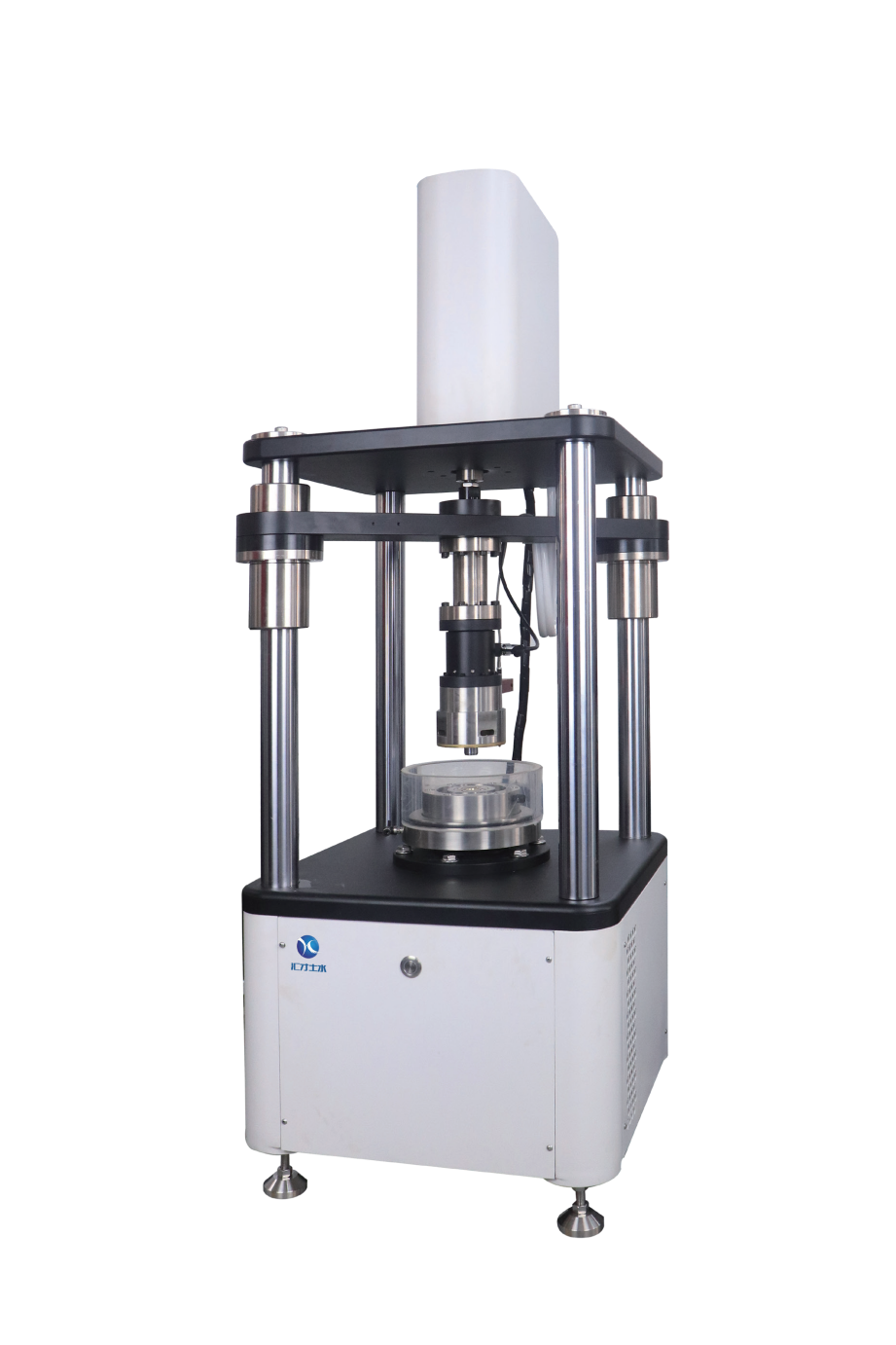

This system is designed for interface shear tests on fine-grained soil. It can comprehensively investigate the interfacial mechanical behavior and failure mechanism of fine-grained soil under shearing, so as to reveal the interfacial characteristics of fine-grained soil and its performance in engineering applications. It can perform interface shear strength tests, interface friction characteristic tests, peak interface shear strength tests and residual interface shear strength analysis.
Technical Parameters
Specimen size: outer diameter 100 mm, inner diameter 70 mm (annular, area 40 cm²).
Maximum axial load: 5 kN.
Maximum torque: 200 N·m.
Rotation angle and rate: angle range 0～360°, rate range 0.05°–135°/min.
Angle measurement: angle resolution 0.01°.
Upgrade Options
Temperature control function.
Remote cloud service.
