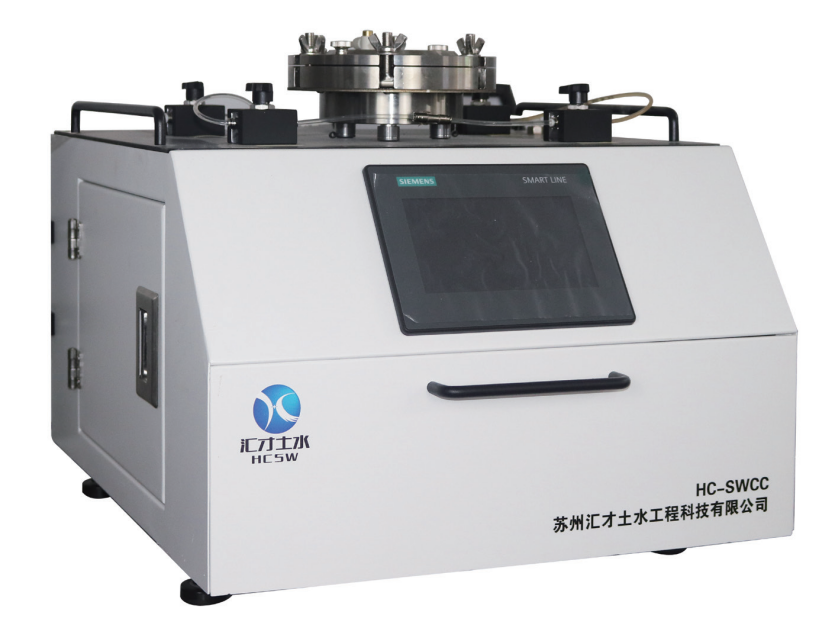

Soil-Water Characteristic & Permeability Test System HC-SWCC

System Description

The Combined Soil-Water Characteristic & Hydraulic Conductivity Test System determines soil-water characteristic curves and hydraulic conductivity based on the axis translation technique. It can simultaneously measure the transient permeability coefficient (patented method). Air pressure is controlled by an electric pneumatic proportional valve, enabling accurate measurement of water discharge and water supply volumes.

System Features

Equipped with air bubble flushing function;

Adopts high-precision electronic weighing module with an accuracy of 0.001 g, and built-in evaporation compensation measurement.

Upgrade Options

Maximum axial load: 10 kN (customizable);

Temperature control: -10 ~ +50 °C (customizable);

Remote cloud service.

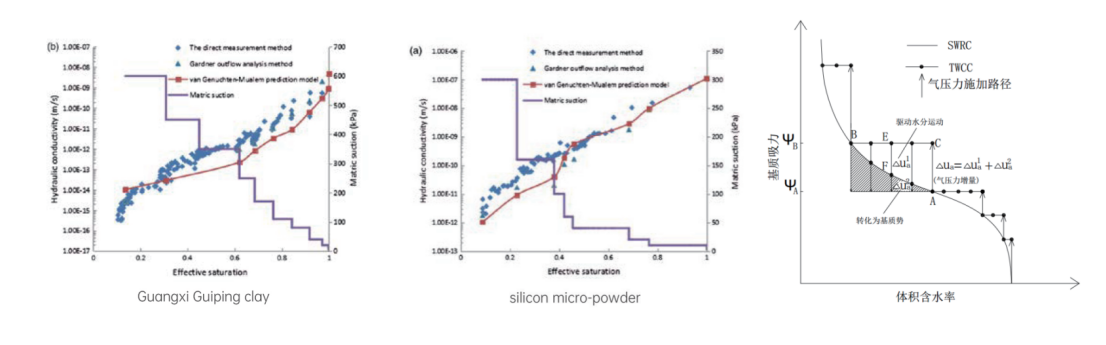

Schematic Diagram of SWRC and Transient Permeability Coefficient Measurement
