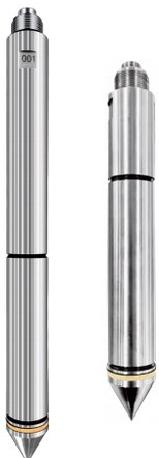

CONE of CPT

Product Types

• Cone for Pore Pressure（Qc、Fs、u）

• Inclinometer Cone for Pore Pressure（Qc、Fs、u、Tilt）

Main Features

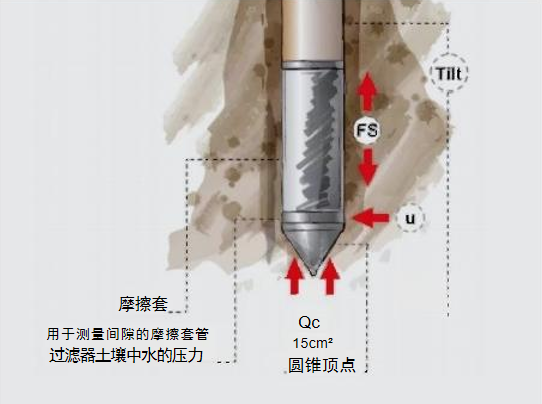

• Tip ( Qc ) and a side wall friction sleeve ( Fs )

  Made of special alloy steel, extremely sensitive and reliable; The new cone made of special stainless steel ensures ultimate durability and can be tested even on the hardest soil.

• The pore water pressure ( u ) sensor

  Used to measure the gap pressure of water, the water in the soil is filtered by a permeable stone and enters the probe, which can be coated with silicone oil to ensure the accuracy of experimental data.

• Tilt sensor

  During the penetration, the value of the inclination clearly reflects the accuracy of the soil values obtained during the testing.
