WYSB-10 Portable Hydraulic CPT

Main Features

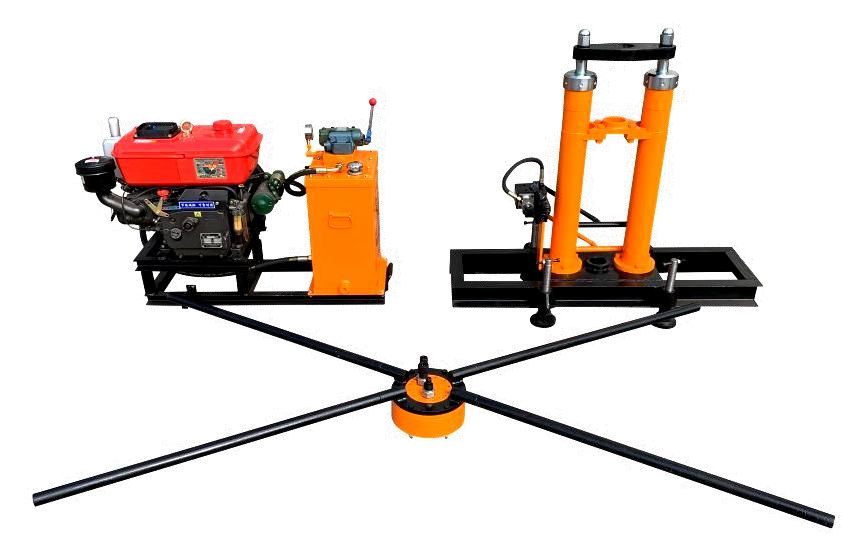

The WYSB-10 Dual-Cylinder Lightweight Hydraulic Static Cone Penetrometer is an economical solution for CPT testing. Featuring an independent hydraulic power unit and cylinder assembly, it is flexibly connected via high-pressure hoses and hydraulic quick couplings. It allows surveying in narrow spaces or areas inaccessible to large machinery, and can be easily mounted on a wide range of new or existing platforms, including transport vehicles, tracked chassis, trailers and barges.

Equipped with high-end hydraulic components and parts, the system ensures stable and reliable performance.  Its anti-high oil temperature design effectively extends service life and maintains working efficiency even in high-temperature environments.

With optional accessories, it can be extended for various in-situ tests such as Piezocone Penetration Test (CPTU), Dilatometer Test (DMT), Vane Shear Test (VCT), and Push-in Wave Velocity Test (WVT).
