Heavy Dynamic Penetrometer H200

The H200 series dynamic penetration test system is applicable to soil bearing capacity tests, compaction tests and soil sampling. Adjustable drop height and hammer weight enable dynamic testing in compliance with multiple standards. Equipped with a probe extraction device, it facilitates easy removal of the probe or sampler. In addition, it is suitable for operation in confined spaces, and the foldable mast meets the requirements of long-distance transportation, making it ideal for field work.

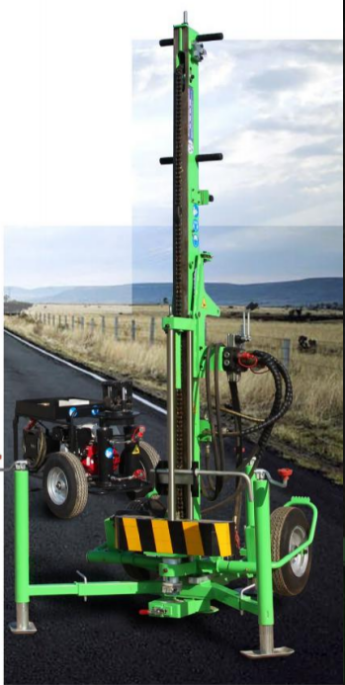

The H200 is a wheeled manually transportable dynamic penetration system equipped with a hydraulic motor and a foldable mast. Its integrated tripod support with a crank enables stable on-site installation and facilitates easy soil sampling.

Main Features

• Foldable mast for easy movement;

• Adaptable to various terrains with a wide range of applications;

• Hammer weight can be adjusted as required;

• Compatible with various dynamic test standards;

• Drop hammer height adjustable from 50 to 750 mm;

• Mechanical blow counter;

• Hydraulic rod extraction device;

• 6.5HP 4-stroke Honda engine, flow rate: 15L/min, rated pressure: 16MPa;

• Three-legged support, enabling vertical operation in all positions;

• Basic weight: 10kg, additional weights: 20kg+20kg+13.5kg;

• Compatible with dynamic soil tests including DPL, DPM, DPH, DPSH and SPT.
