Miniature Acceleration Transducers ACC-II-352C

To meet the requirements of high precision, high repeatability and high frequency response for vibration acceleration measurement in model tests of various soils and geotechnical structures under multi‑field coupling conditions, as well as to adapt to special testing environments such as dynamic centrifuge model tests and shaking table tests, strict standards are often required for the miniaturization and frequency response characteristics of vibration acceleration sensors. In addition, it is necessary to minimize the range of flow field disturbance to ensure the acquisition of accurate and reliable variation laws of vibration acceleration.

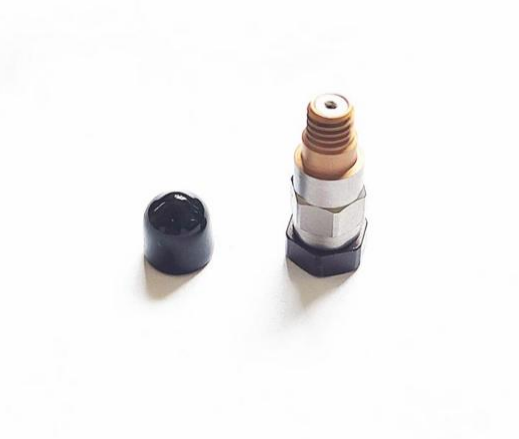

The ACC‑II‑352C miniature acceleration sensor is developed and designed to meet the above working conditions. Adopting advanced domestic ICP piezoelectric ceramic technology and integrated with state‑of‑the‑art miniaturized fabrication and packaging processes, this sensor features small size, light weight, wide dynamic range, broad frequency response, robust structure and strong anti‑interference ability.

Typical features

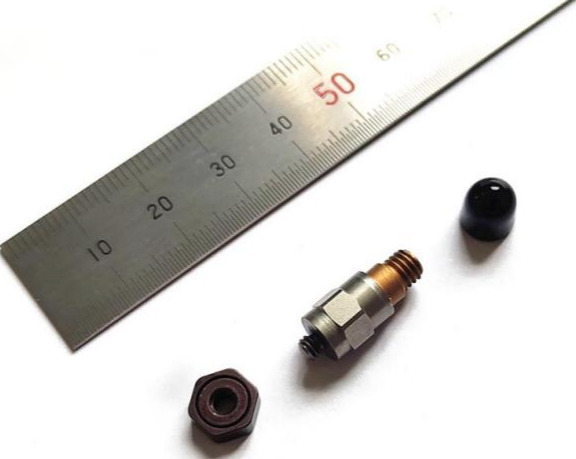

• Miniaturized: weight 2g, size 9/32×18.5mm

• High frequency response: frequency range up to (±3dB) 20kHz

• Wide temperature operating range: -53~+93℃

• Suitable for high-frequency dynamic vibration acceleration measurement

• Excellent corrosion resistance: titanium alloy housing

• High reliability, high stability, and long durability

• Resistance to strong/weak electromagnetic interference, high centrifugal force, and strong impact interference

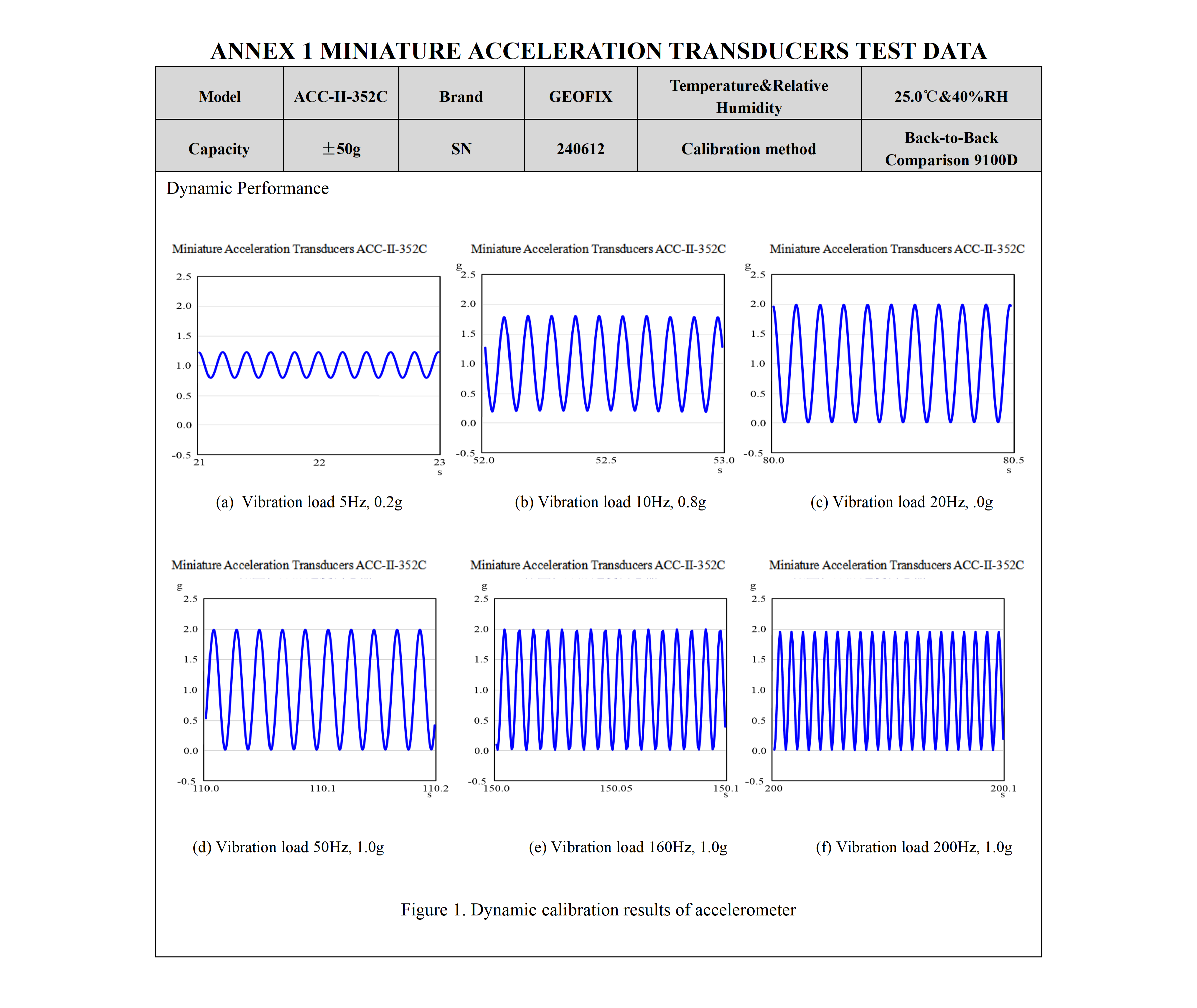

• Complete factory report provided

Typical applications

• High centrifugal acceleration geotechnical centrifugal model test

• High centrifugal vibration acceleration centrifugal model test

• Refined shaking table test

• Load monitoring in traffic, survey, construction, etc.

• Model test of impact ground pressure tunnel

• Seabed shield tunnel model test

• Explosion and shock wave tests, etc.
